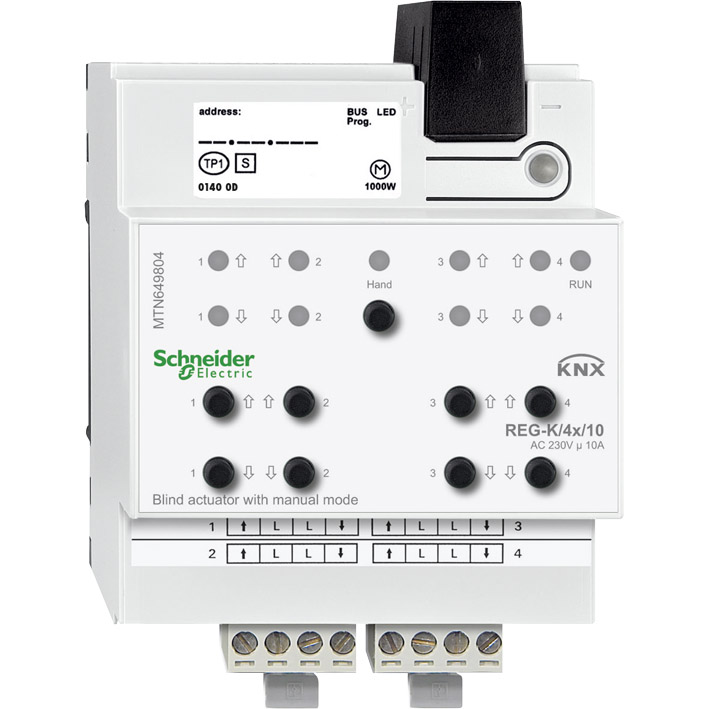

For independent control of 4 blind/roller shutter
drives. The functions of the blind channels is freely
configurable. All blind outputs can be operated
manually using push-button operation. With integrated
bus coupling unit. For installation onto DIN
rails EN 50022.
The bus is connected using a bus connecting terminal;
a data rail is not necessary. Channel status
display via LEDs. A green LED indicates readiness
for operation.
KNX software functions:
Blind functions: Blind type. Running time. Idle
time. Step interval. Differentiated disable functions
and weather alarms. 8-bit positioning for
height and slat. Scenes. Manual/automatic mode.
Differentiated status and status feedback functions.
For each blind output:
Nominal voltage: AC 230 V, 50-60 Hz
Nominal current: 10 A, cosφ = 0.6
Motor load: AC 230 V, max. 1000 W
Device width: 4 modules = approx. 72 mm
— Contents: With bus connecting terminal and cable cover.
