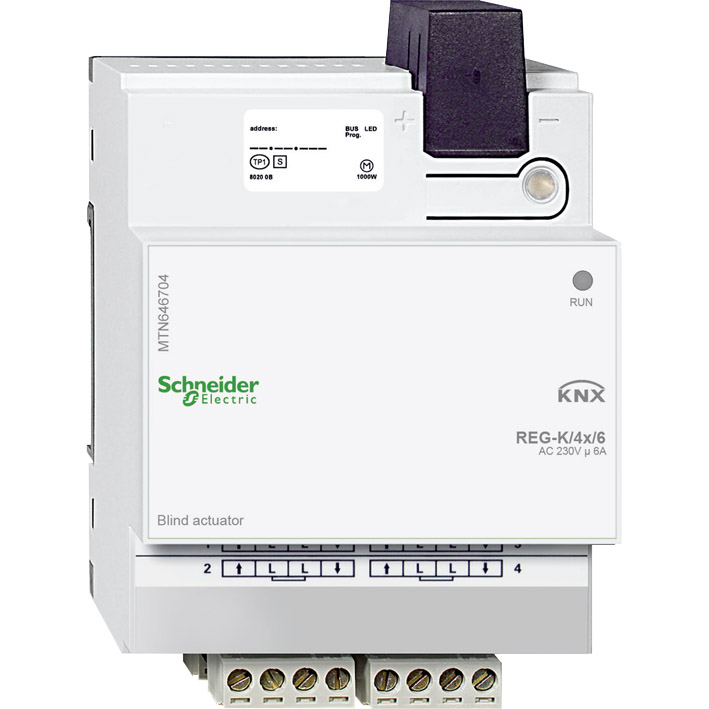

Blind actuator REG-K/4x/6
432,01€
SKU: MTN646704
For independent control of 4 blind/roller shutter
drives. With integrated bus coupler and plug-in
screw terminals. For installation onto DIN rails EN
50022.
The bus is connected using a bus connecting terminal;
a data rail is not necessary. A green LED
indicates readiness for operation after the application
has been loaded.
KNX software functions:
Blind functions: Blind type. Running time. Idle
time. Step interval. Weather alarms. 8-bit positioning
for height and slats. Scenes. Automatic function.
Differentiated status and feedback functions.
For each blind output:
Nominal voltage: AC 230 V, 50-60 Hz
Nominal current: 6 A, cos???? = 0.6
Motor load: AC 230 V, max. 1000 W
Device width: 4 modules = approx. 72 mm
— Contents: With bus connecting terminal and cable cover.
Price: 432,01€
