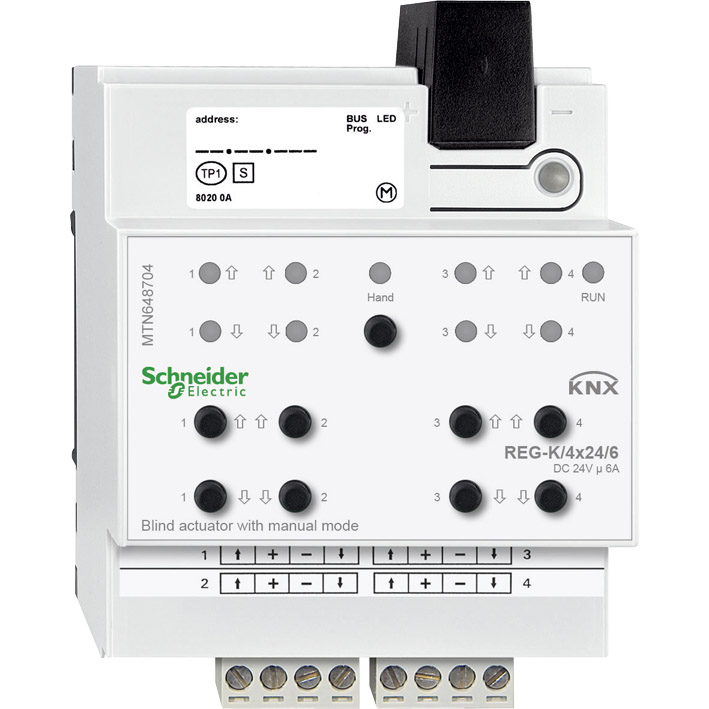

For independent control of 4 blind/roller shutter
drives. The function of the blind channels is freely
configurable. All blind outputs can be operated
manually using push-button operation. With integrated
bus coupler. For installation onto DIN rails
EN 50022.
The bus is connected using a bus connecting terminal;
a data rail is not necessary. Channel status
display via LEDs. A green LED indicates readiness
for operation.
KNX software functions:
Blind functions: Blind type. Running time. Idle
time. Step interval. Differentiated disable functions
and weather alarms. 8-bit positioning for
height and slat. Scenes. Manual/automatic mode.
Differentiated status and status feedback functions.
For each blind output:
Nominal voltage: DC 24 V ±10 %
Nominal current: 6 A
Load types: 24 V direct current drives
Device width: 4 modules = approx. 72 mm
— Contents: With bus connecting terminal and cable cover.
Availability: Available June 2007.
