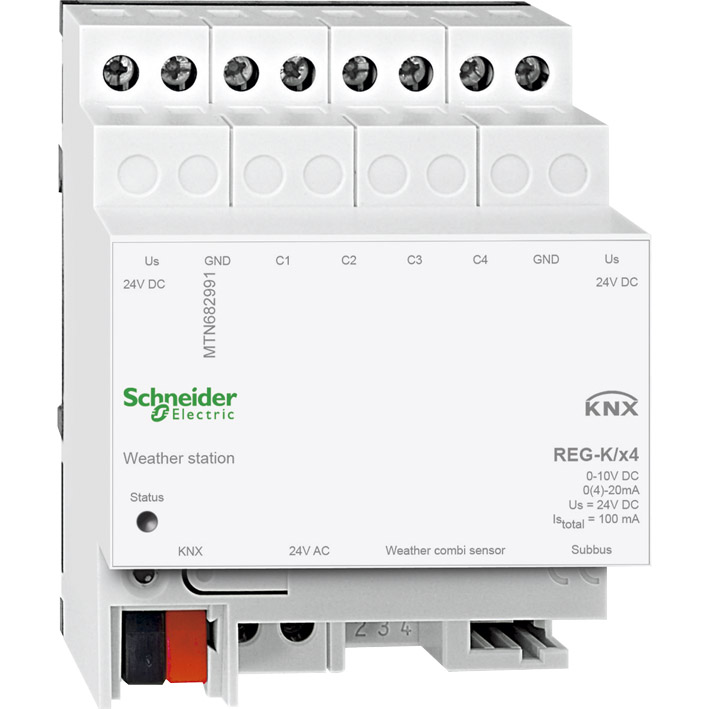

The weather station records and processes analogue
sensor signals such as wind speed, brightness, twilight, precipitation and a DCF-77 signal.
Up to four analogue sensors and the DCF-77 weather combi-sensor can be connected in any combination.

In connection with the 4-gang analogue input module,
8 analogue inputs are available, to which the connection is made using the sub-bus.

For installation on DIN rails EN 50022.
The bus is connected using a bus connecting terminal;
a data rail is not necessary.
If DCF-77 weather combi-sensors are used, it is
possible to access a pre-configured setting in the
software.
The measured values are converted by the weather station into 1 byte / 2 byte telegrams (EIS 6/5 value). This enables bus devices (visualisation software, measured value displays) to access the
control processes, generate signals or control
weather-dependent processes. Programming is
performed using the ETS tool for the weather station.

Functions:
• Two limit values per sensor (not for rain)
• Connection of multiple wind sensors
• 14 signals can be evaluated
• Evaluation of DCF-77 time signal (date and time)
• Astro function
• Logic operation controller for application of limit-value-dependent actions (even external)
• Shading of individual façade segments
• Signal monitoring of the combi-sensors with
object for the following protective measures
• Checking the wind signal for conclusiveness
with object for the following protective measures
• Selective façade shading (for 4 façades) with
adjustment of the basic brightness, façade
alignment, angle of opening relative to the sun.
• External objects for intervention in basic brightness,
angle of opening and limit values
• Alarm byte
• Continuity monitoring with report on the bus

Auxiliary voltage: AC 24 V (+/-10 %)
Analogue inputs: 4
Current interface: 0 ... 20 mA, 4 ... 20 mA
Voltage interface: 0 ... 1 V, 0 ... 10 V
Outputs: DC 24 V, 100 mA
Device width: 4 modules = approx. 72 mm

In KNX, to be completed with: Power supply REG, AC 24 V / 1 A,
art. no. 663529. ETS tool for weather station, art. no. 615048.

Accessories: Analogue input module REG/4-gang, art. no. 682192. Weather combi-sensor/DCF-77, art. no. 663692. Wind sensor with 0-10 V interface, art. no. 663591. Wind sensor with 0-10 V interface and heating, art. no. 663592. Rain sensor, art. no.
663595. Brightness sensor, art. no. 663593: Twilight sensor, art. no. 663594: Temperature sensor, art. no. 663596.

Contents: With bus connecting terminal and cable cover.
