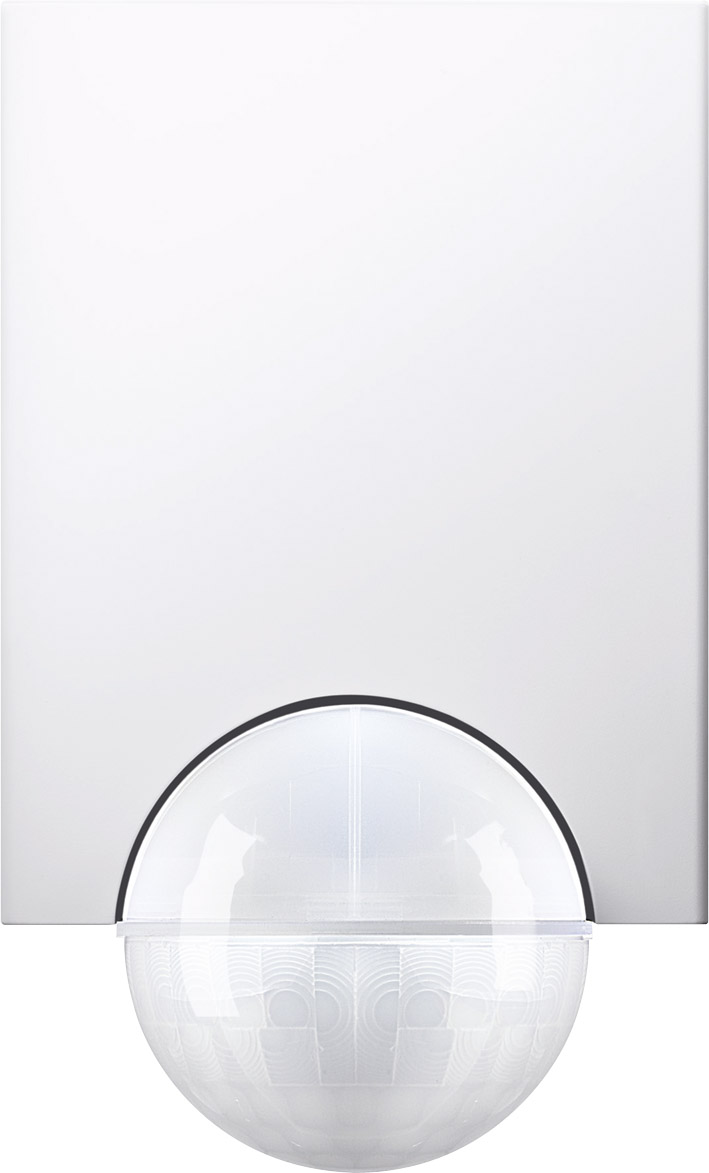

Electronic outdoor movement detector. 110° surface monitoring for smaller house fronts and sections of the house.
• 360° short-range zone (approx. 4 m radius).
• Large wiring compartment and plug system.
• Looping is possible.
• LED function display for fast alignment at the installation site.
• Operating elements are protected under the easily accessible cover plate.
• Flexibly adjustable sensor head.
• Possible to blank out individual lens areas.
Can be installed on walls and ceilings without additional accessories. Can be mounted on inner/outer corners and stationary pipes using a mounting bracket.
Mains voltage: AC 230 V, ± 10 %, 50 Hz
Incandescent lamps: AC 230 V, max. 2000 W
Halogen lamps: AC 230 V, max. 1200 W
Fluorescent lamps: AC 230 V, 1200 W uncompensated
Capacitive load: max. 35 µF
Max. switching current: 16 A, AC 230 V, cosφ = 1
Angle of detection: 110°
Range: max. 12 m
Number of levels: 7
Number of zones: 92 with 368 switching segments
Light sensor: infinitely adjustable from 3-1000 lux
Time: 1 sec. to approx. 8 min. in 6 levels
Neutral conductor: required
Possible to set the sensor head
Wall mounting: 9° up, 24° down, 12° left/right, ± 12° axial
Ceiling mounting: 4° up, 29° down, 25° left/right, ± 8.5° axial
EC guidelines: Low voltage guideline 2006/95/EC and EMC guideline 2004/108/EC
Type of protection: IP 55
