For System M.
With integrated bus coupling unit.

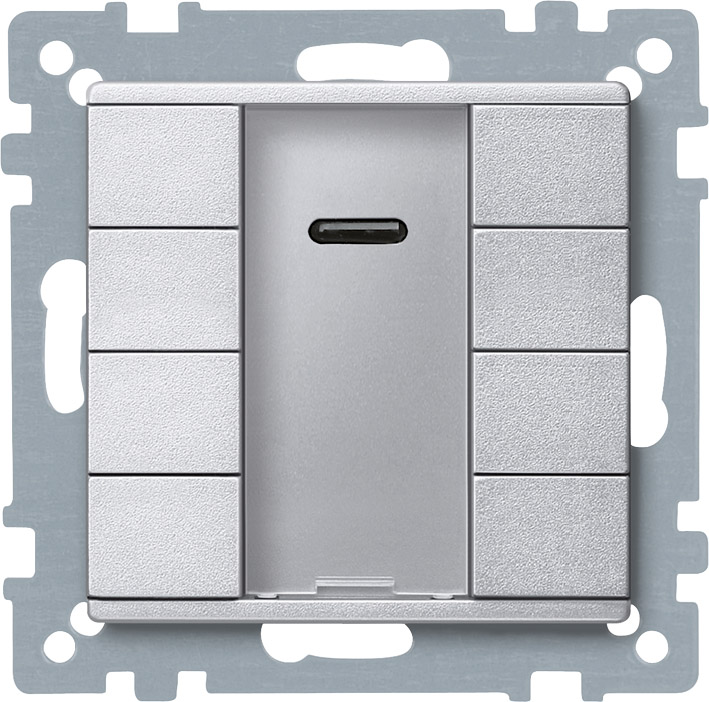

Push-button with 8 operating buttons, operating and status display and labelling field. The operating
display can also be used as an orientation light.

The functions of each of the keys can be triggered using an IR remote control.

The push-button is pre-programmed for operation with a Merten IR remote control Distance. Many other IR remote controls (e.g. existing TV or CD player remote controls) can be taught into the push-buttons.

The device is connected to the bus line with a bus connecting terminal.

KNX software functions:
Switching, toggling, dimming (single/dual-surface), blind (single/dual-surface), pulse edges trigger
1-, 2-, 4- or 8-bit telegrams (distinction between short and long operation), pulse edges with 2-byte telegrams (distinction between short and long operation), 8-bit linear regulator, scene retrieval, scene saving, disable functions.

Accessories: Labelling sheets for multi-function push-button with IR receiver, art. no. 618419/20.

Transmitter: IR remote control Distance, art. no. 570222.

Contents: With protective hood for plaster. With bus connecting terminal.
