amena70-VI + HP server + Visualization
3.801,59€
SKU: GDS0004
Control your building using the top Netx Automation Visualization Software which supports:
- Up to 10.000 data points. (Upgratable to unlimited)
- Upgratable to up to 500 simiulatiously clients.
- Connected from Internet via Desktop, laptop, netbook, smartphone e.t.c.
- Connection to 1 Ip gateway (required) (Upgradable to up to 20 gateways)
- Lighting
- HVAC
- Blinds
- Lighting
- Street Door Communication
- Cameras
- Alarms - Alerts
- Security System
- Energy
Controls with friendly way:

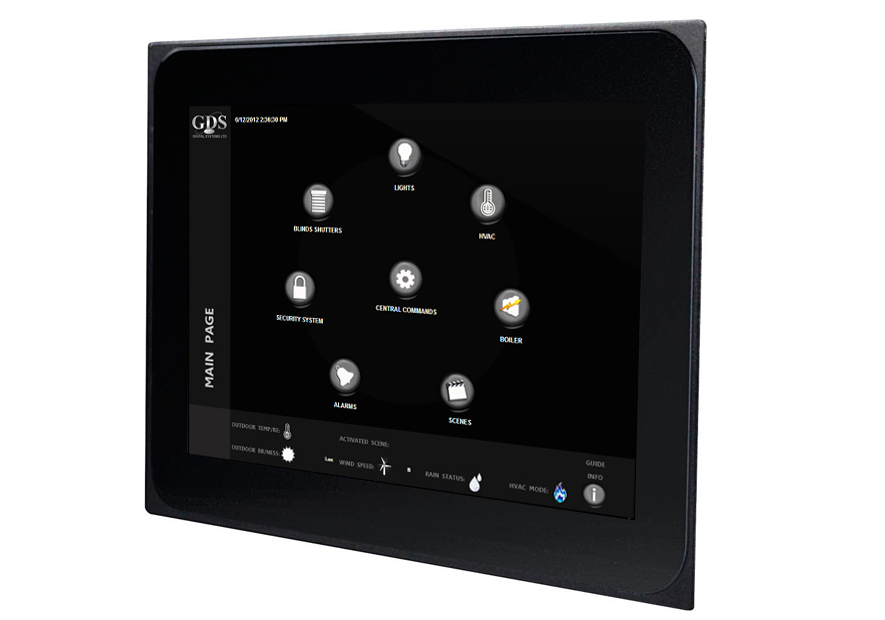

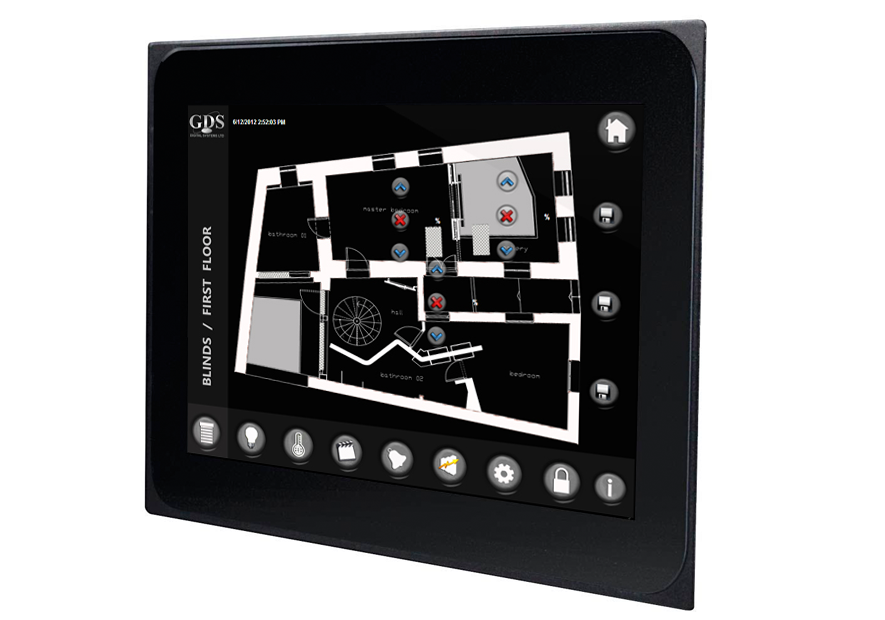

Android Touch Panel This touch panel with a 7" multitouch display is designed for in-wall installation. It provides the same degree of operating ease as a smartphone, but has a far longer service life thanks to its industrial build quality. * Multitouch panel with continuous glass surface * Microphone and speaker with echo cancelling for hands-free intercom * Sensors for brightness * Android * All apps available. Weather, mail, movies, radio,…unlimited * Flush-fitting installation using a plaster-in housing or flush mounting using a flush-mounted box
Technical data
* Equipped with 7" widescreen touch, WVGA 800 x 480 * Multitouch panel with continuous glass surface * Equipment : see Order Info * Interfaces: see Order Info * Optional: ICOM * Power-over-Ethernet]Specifications
* Working temperature: 0 up to 35°C * Storage temperature: -20 up to 70°C * Relative humidity: 10 up to 90 %, not condensing * Power input: 10-48VDC -------------------------Equipment

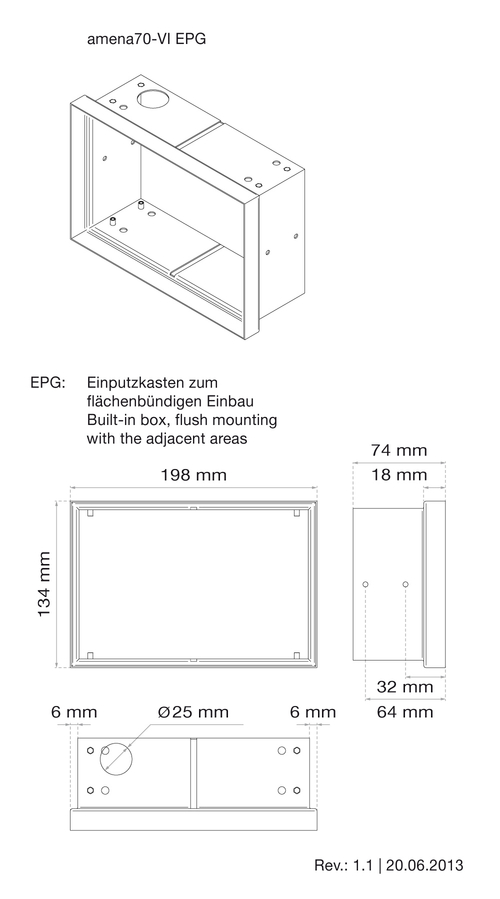

7" Widescreen multitouch panel with continuous glass surface, WVGA 800 x 480, Embedded CPU Board ARM Cortex A8, 1GHz, 512MB RAM, ethernet 10/100, 2x USB2.0, 1x Mini-USB, 1x LAN RJ45 (Power-over-Ethernet), microphone and speaker Operating system: Android Mounting for tci-mounted box ------------------------Operating system
Android ------------------------Server
HP Micro Proliant N40L with Microsoft Windows XP Dual-Core AMD Turion II Model NEO N40L (1.5 GHz) 2 MB L2 Cache 2GB (1 x 2GB) PC3-10600E (UDIMM) Embedded SATA Controller with Embedded RAID (0, 1) Up to 4 Non Hot Plug Hard Drives 250GB SATA Non Hot Plug (LFF) Single NC107i PCIe Gigabit Server Adapter Ports: eSATA (1), VGA (1), USB 7 (6 + 1 internal) Slots: 1 PCI-Express x16 (x8 speed), 2 PCI-Express x8 (x4 speed) 150 Watts Non-Hot Plug, Non redundant Power Supply
Visualization
S04.01.0.20.02 NetX Voyager Server 1.0 UD (HOME VERSION)
Price: 3.801,59€
