Main

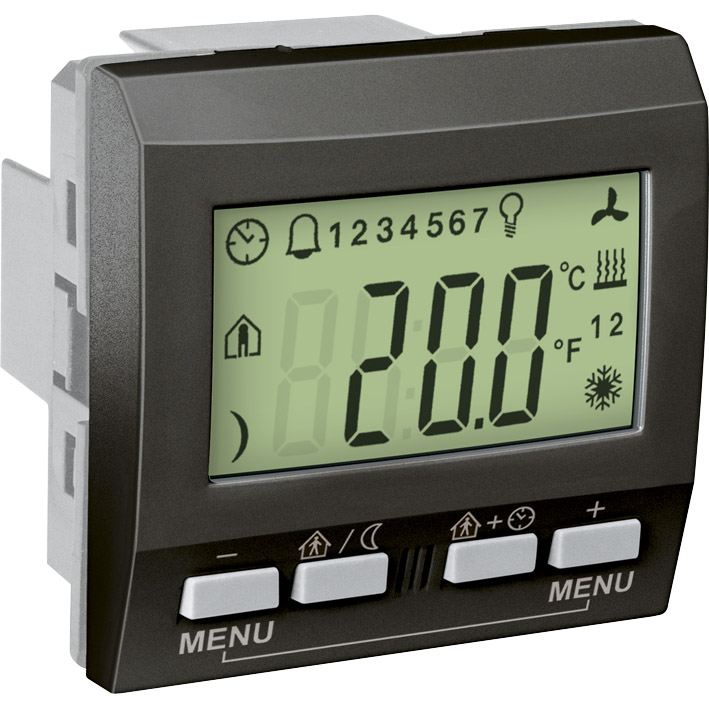

Aesthetic name Unica KNX
Product or component type Room temperature control unit
Device presentation Mechanism
Device composition Display
4 buttons
[Ue] rated operational voltage 230 V AC (+/- 10 %), 50/60 Hz
Number of modules 2 modules
Fixing mode Clip-in
Cover plate colour tint graph.
Mounting height > 1.5 m
Complementary
Programmable temperature No
Temperature setting range 0...40 °C
Measurement accuracy ± 1 K
Contacts type and composition 1 C/O
Information displayed Day
Time
Operating mode
Temperature
Status LED Programming LED
Connections - terminals Screwless terminals
Number of cables 2 rigid: <= 2.5 mm²
2 flexible: <= 2.5 mm²
Standards EMC directive
LV directive
Product certifications Aenor
CE
Ambient air temperature for operation -5...45 °C
Embedding depth 26 mm
Depth 39 mm
Environment
IK degree of protection IK01
IP degree of protection IP20
Environmental characteristic Acetone
Alcohol
Ammonia
Bleach
Liquid soap
Oil
Petrol
UV resistant
Window-cleaning fluid
Environmental health and issues Halogen free
