Main

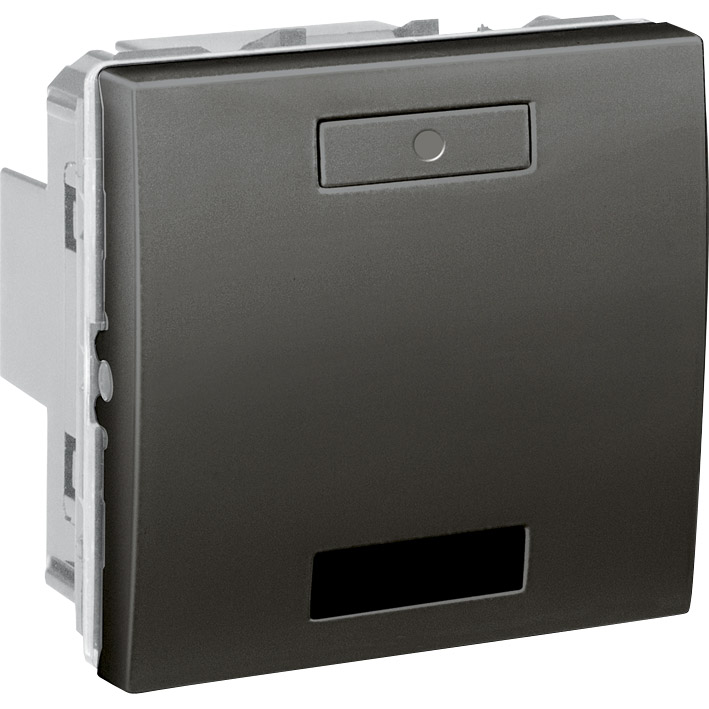

Aesthetic name Unica KNX
Product or component type Switch
Device presentation Mechanism
Switch function 2-way
Transmission support medium Infrared
Rated current 10 A, 250 V AC, 50/60 Hz
Actuator Pushbutton
Number of modules 2 modules
Fixing mode Screws
Cover plate colour tint Graphite
Complementary
Contacts type and composition 2 NO
Opening distance > 3 mm
Pilot light Blue LED: 1 mA (temperature : 15 °C)
Connections - terminals Screwless terminals
Cable cross section <= 2.5 mm² (rigid)
<= 2.5 mm² (flexible)
Insulation resistance > 5 MOhm @500 V
Dielectric strength > 2000 V
Standards EMC directive
LV directive
Ambient air temperature for operation -5...45 °C
Environment
IK degree of protection IK01
IP degree of protection IP20
Environmental characteristic Acetone
Alcohol
Ammonia
Bleach
Liquid soap
Oil
Petrol
UV resistant
Window-cleaning fluid
Environmental health and issues Halogen free
