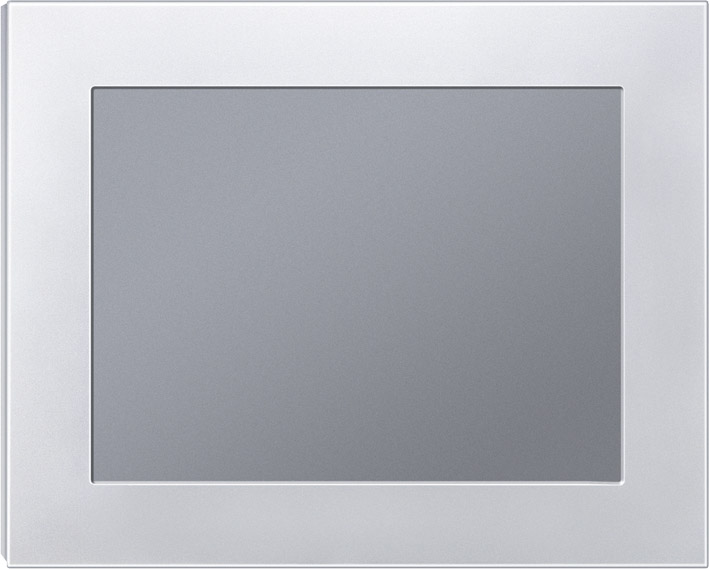

The IP touch panel 10" is used for the visualisation
and control of current building statuses and functions.
It is operated interactively on the touch-sensitive
TFT display.
Windows CE is installed as the operating system.
With this standard, solutions such as data management,
web functions and client/server and network
functions can be configured quickly and
easily. Via a browser, it is also possible, for example,
to use Merten@home with the IC 1 EIB Internet
Controller.
Using the optional visualisation software, the IP
touch panel 10" can be programmed for the visualised,
interactive control of building functions.
The IP touch panel 10" has LAN (10/100 Mbit/s),
and a RS 232 and USB connection. The USB connection
is in the front behind the frame. A plug-in
INSTABUS module can be used to connect the IP
touch panel 10" to the KNX.
Due to its flat design in a flush-mounted housing,
its uses range from home applications to purposebuilt
applications.
KNX software functions:
Configuration using the "TP VISU configuration
tool".
Display size: 10.4" (24.4 cm)
Resolution: 800 x 600 pixels, SVGA
Display type: TFT, resistive touch
Colours shown: > 65000
Mains voltage: DC 24 V
Power consumption: < 20W
RAM: 128 MB
Data buffering: via battery
Ambient operating temperature: 5°C bis 40°C
Type of protection: IP 20
Frame dimensions: 224.7x277.5x12 mm (HxWxD)
Opening: 157.4x210.2 mm (HxW)
˜ To be completed with: Power supply REG, DC 24 V/1 A, art. no.
693004.
Accessories: INSTABUS EIB module for IP touch panel art. no.
683093. Design frame for IP touch panel 10" art. no. 489960.
Flush-mounted mounting box for IP touch panel 10" art. no.
683091. Cavity wall mounting box for IP touch panel 10" art. no.
683092.
— Note: The TP VISU configuration tool is available on the Internet or
on the Merten info CD.
Contents: With Design M-Plan frames, aluminium.
