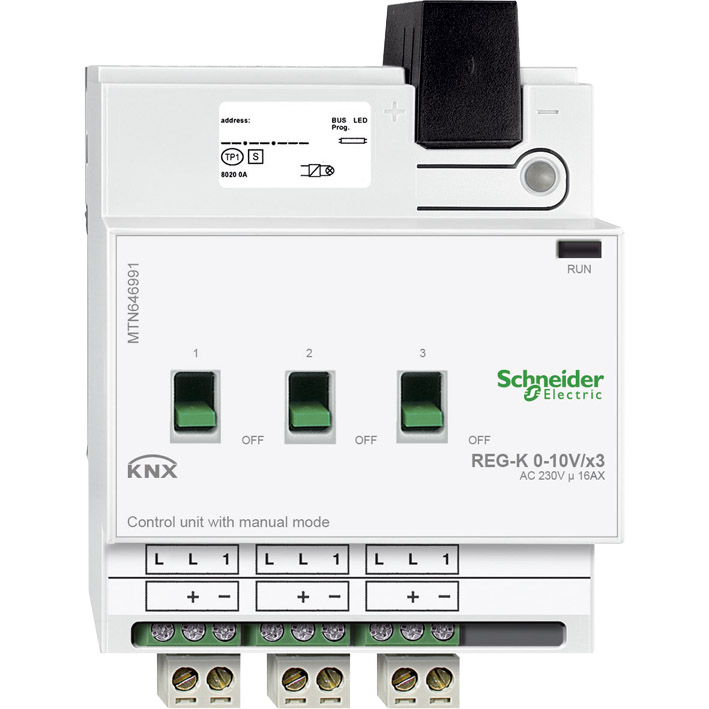

For connecting devices with 0-10 V interface
toKNX. With integrated bus coupler and screw terminals
(230 V) or plug-in screw terminals (0-10 V).
Each individual 230 V switch output can be operated
manually with a manual switch. For installation
onto DIN rails EN 50022.
The bus is connected using a bus connecting terminal;
a data rail is not necessary.
KNX software functions:
Different dimming curves and dimming speeds,
the same dimming time, memory function, ON/
OFF delay, staircase time function with/without
manual OFF function, scenes (up to eight stored
brightness values can be retrieved), central function,
logic operation or priority control, blocking
function, status feedback, behaviour on bus voltage
recovery.
Switch contact: for switching the electronic ballasts/
transformers
Switching voltage: AC 230 V
Switching current:16 A, cosφ = 0.6
Switching capacity: AC 230 V, 3600 W, cosφ = 1
Capacitive load: AC 230 V, 3600 W, 200 μF
Halogen lamps: AC 230 V, 2500 W
Fluorescent lamps:
AC 230 V, max. 5000 W, uncompensated
AC 230 V, max. 2500 VA, with parallel compensation
0-10 V interface: for dimming the electronic ballasts/
transformers
Voltage range: DC 0-10 V
Device width: 4 TE = approx. 72 mm
— Contents: With bus connecting terminal and cable cover.
Availability: Available July 2007.
