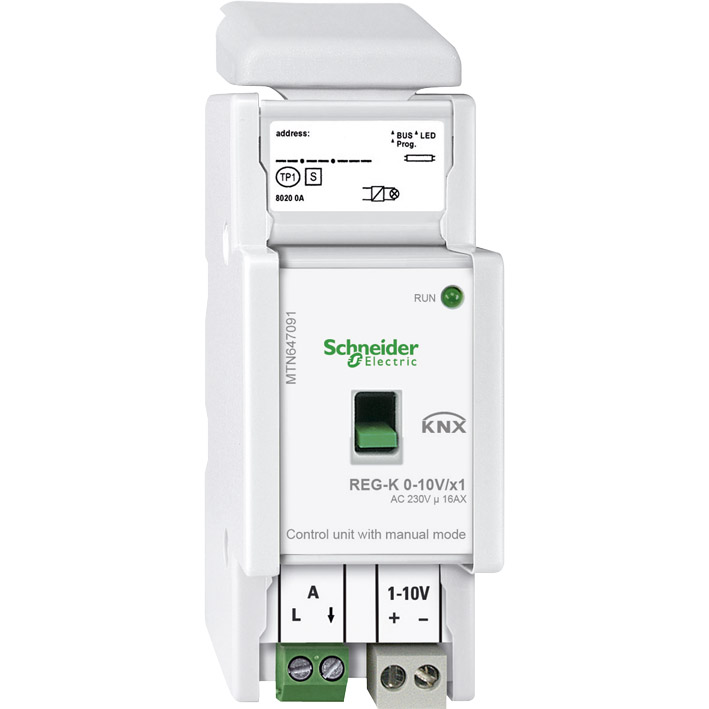

For connecting devices with 0-10 V interface to
KNX. With integrated bus coupler and screw terminals
(230 V) or plug-in screw terminals (0-10 V).
The 230 V switch output can be operated with a
manual switch. For installation onto DIN rails
EN 50022.
Bus connection is via bus terminals, a data rail is
not necessary. A green LED indicates that the
device is ready for operation once the application
has been loaded.
KNX software functions:
Different dimming curves and dimming speeds,
the same dimming time, memory function, ON/
OFF delay, staircase time function with/without
manual OFF function, scenes (up to eight stored
brightness values can be retrieved), central function,
logic operation or priority control, blocking
function, status feedback, behaviour on bus voltage
recovery.
Switch contact: for switching the electronic ballasts/
transformers
Switching voltage: AC 230 V
Switching current:16 A, cosφ = 0.6
Switching capacity: AC 230 V, 3600 W, cosφ= 1
Capacitive load: AC 230 V, 3600 W, 200 μF
Halogen lamps: AC 230 V, 2500 W
Fluorescent lamps:
AC 230 V, max. 5000 W, uncompensated
AC 230 V, max. 2500 VA, with parallel compensation
0-10 V interface: for dimming the electronic ballasts/
transformers
Voltage range: DC 0-10 V
Device width: 2.5 TE = approx. 45 mm
— Contents: With bus connecting terminal and cable cover.
Availability: Available July 2007.
