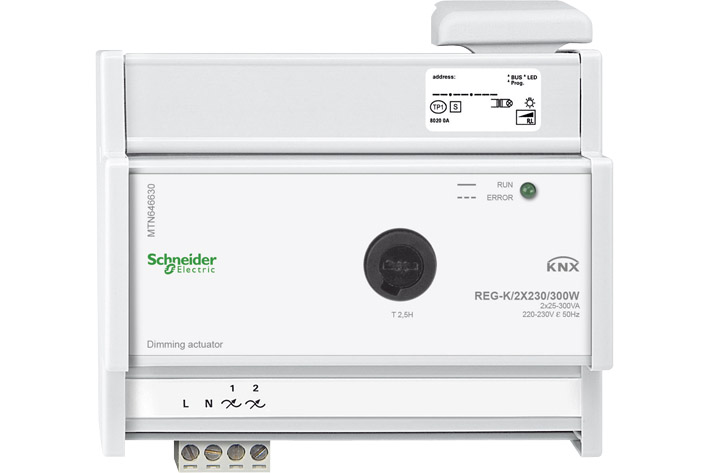

For switching and dimming incandescent lamps
and dimmable, wound transformers (ohmic /
inductive load).
(Phase control)
With integral bus coupler, plug-in screw terminals,
short-circuit and overload protection and soft start
function to protect the lamps. For installation onto
DIN rails EN 50022.
Bus connection is via bus terminals, a data rail is
not necessary. Readiness for operation is indicated
by a green LED after the application has
been loaded, and an overload of one channel or
both channels is indicated by a flashing light.
KNX software functions:
Starting behaviour, memory function, dimming
speed, switching off by relative dimming, configurable
minimum brightness and behaviour on bus
voltage failure/recovery are programmable.
Nominal voltage: AC 230 V, 50 Hz
Nominal power:
per channel: max. 300 W/VA
per channel: max. 300 W/VA
Minimum load: 25 W/VA
Short-circuit protection: via fuse
Device width: 6 modules = approx. 108 mm
— Contents: With bus connecting terminal and cable cover.
