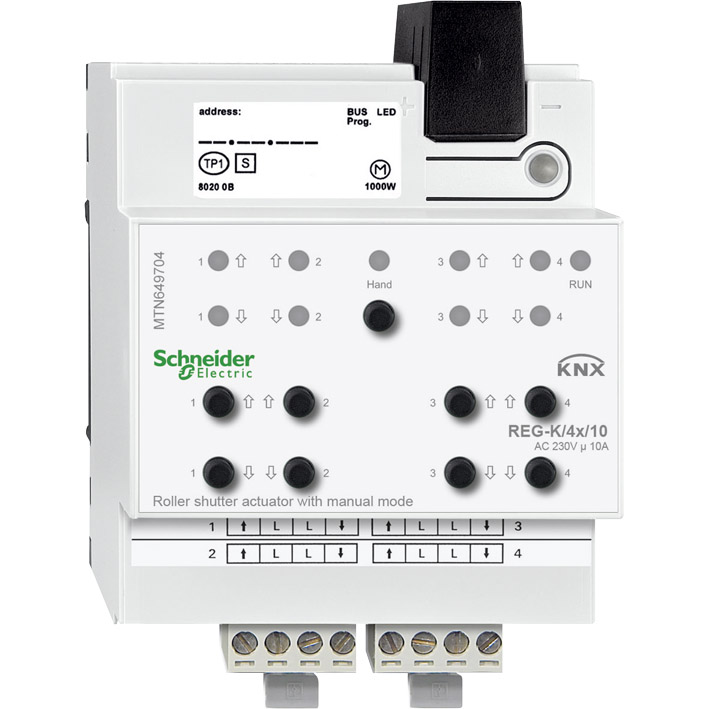

For independent control of 4 roller shutter drives.
The function of the roller shutter channels is freely configurable. All roller shutter outputs can be operated manually using push-button operation.
With integrated bus coupler. For installation onto DIN rails EN 50022.
Bus connection is via bus terminals, a data rail is not necessary. Channel status display via LEDs. A green LED indicates readiness for operation.
KNX software functions:
Roller shutter functions:
Running time.
Idle time.
Differentiated disable functions and weatheralarms.
8-bit positioning for height.
Scenes.
Manual/automatic function.
Differentiated status and status feedback functions.
For each roller shutter output:
Nominal voltage: AC 230 V, 50-60 Hz
Nominal current: 10 A, cosφ= 0.6
Motor load: AC 230 V, max. 1000 W
Device width: 4 modules = approx. 72 mm
— Contents: With bus connecting terminal and cable cover.
