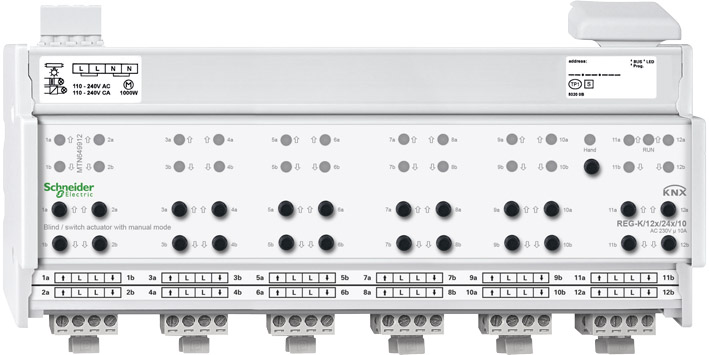

For independent control of up to 12 blind/roller
shutter drives or for switching up to 24 loads via
make contacts. The function of the blind or switching
channels is freely configurable. All blind/switch
outputs can be operated manually using push-buttons.
With integrated bus coupler. For installation
on DIN rails EN 50022.
The bus is connected using a bus connecting terminal;
a data rail is not necessary. Channel status
display via LEDs. A green LED indicates readiness
for operation.
KNX software functions:
Blind functions: Blind type. Running time. Idle
time. Step interval. Weather alarm. 8-bit positioning
for height and slats. Scenes. Status and feedback
function.
Switch actuator functions: Operation as break
contact/make contact. Programmable behaviour
for download. Delay functions for each channel.
Staircase lighting function with/without manual
OFF function. Cut-out warning for staircase lighting
function. Scenes. Central function. Disable function.
Logic operation or priority control. Status
feedback function for each channel.
Power supply:
Nominal voltage: AC 230 V, 50-60 Hz
External auxiliary voltage: AC 110-240 V, 50-
60 Hz, max. 2 VA
For each blind output:
Nominal current: 10 A, cosφ = 0.6
Motor load: AC 230 V, max. 1000 W
For each switch output:
Nominal current: 10 A, cosφ = 1; 10 A, cosφ = 0.6
Incandescent lamps: AC 230 V, max. 2000 W
Halogen lamps: AC 230 V, max. 1700 W
Fluorescent lamps:
AC 230 V, max. 1800 W, uncompensated
AC 230 V, max. 1000 W parallel-compensated
Capacitive load: AC 230 V, max. 105 μF
Device width: 12 TE = approx. 216 mm
— Note: The blind actuator/switch actuator cannot be used in conjunction
with the weather-dependent automatic functions of the
weather combi-sensor/DCF77 art. no. 663692. If you require these
functions then use the blind actuators art. no. 6498...
Contents: With bus connecting terminal and cable cover.
