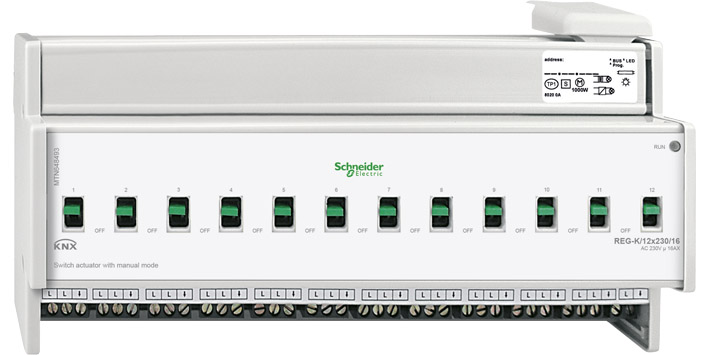

For independent switching of 12 loads via make
contacts. All 230 V switch outputs can be operated
with manual switches. With integrated bus
coupler.
The device is connected to the mains via screw terminals;
every second L connection is bridged internally.
For installation on DIN rails EN50022. The
bus is connected using a bus connecting terminal;
a data rail is not necessary. A green LED indicates
readiness for operation after the application has
been loaded.
KNX software functions:
Operation as break or make contact, delay functions
for each channel, staircase lighting function
with/without manual OFF function, cut-out warning
for staircase lighting function, blocking and
additional logic operation or priority control,
scenes, status feedback function per channel,
central function, comprehensive parameterisation
for bus voltage failure and recovery, parameterisable
download behaviour.
Nominal voltage: AC 230 V, 50-60 Hz
Per switch contact:
Nominal current: 16 A, cosφ =0.6
Incandescent lamps: AC 230 V, max. 3600 W
Halogen lamps: AC 230 V, max. 2500 W
Fluorescent lamps: AC 230 V, max. 2500 VA
Capacitive load: AC 230 V, 16 A, max. 200 μF
Device width: 12 modules = approx. 216 mm
— Contents: With bus connecting terminal and cable cover.
