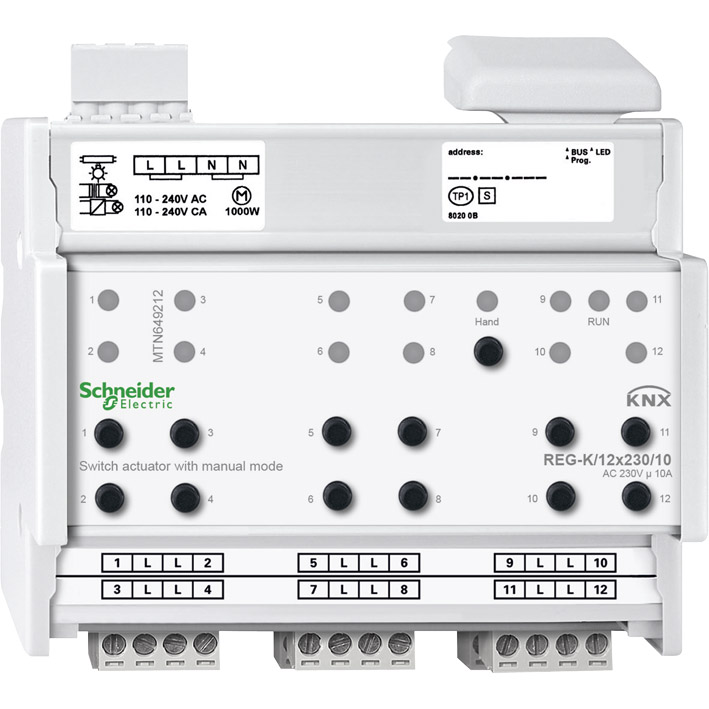

For independent switching of up to 12 loads via
make contacts. The function of the switching
channels is freely configurable. All switching outlets
can be operated manually using push-button
operation. With integrated bus coupler. For installation
on DIN rails EN 50022.
Bus connection is via bus terminals, a data rail is
not necessary. Channel status display via LEDs. A
green LED indicates readiness for operation.
KNX software functions:
Operation as break contact/make contact. Programmable
behaviour for download. Delay functions
for each channel. Staircase lighting function
with/without manual OFF function. Cut-out warning
for staircase lighting function. Scenes. Central
function. Disable function. Logic operation or priority
control. Status feedback function for each
channel.
Power supply:
Nominal voltage: AC 230 V, 50-60 Hz
External auxiliary voltage: AC 110-240 V, 50-
60 Hz, max. 2 VA
For each switch output:
Nominal current: 10 A, cosφ = 1; 10 A, cosφ = 0.6
Incandescent lamps: AC 230 V, max. 2000 W
Halogen lamps: AC 230 V, max. 1700 W
Fluorescent lamps:
AC 230 V, max. 1800 W, uncompensated
AC 230 V, max. 1000 W with parallel compensation
Capacitive load: AC 230 V, max. 105 μF
Device width: 6 modules = approx. 108 mm
— Contents: With bus connecting terminal and cable cover.
