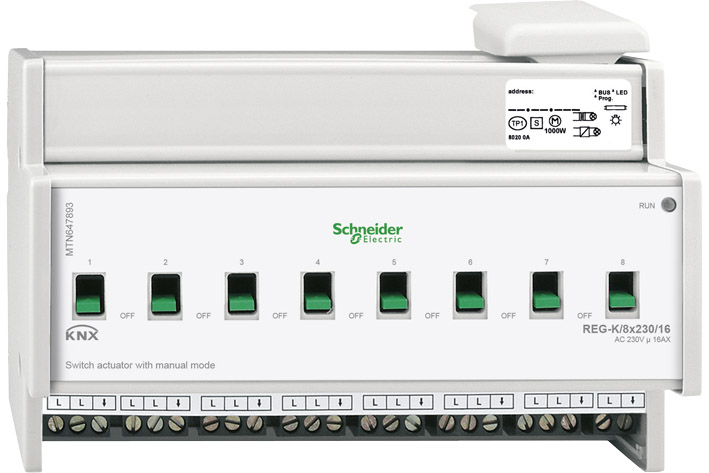

For independent switching of 8 loads via make
contacts. All 230 V switch outputs can be operated
with manual switches. With integrated bus
coupler. For installation on DIN rails EN 50022.
The device is connected to the mains via screw terminals;
every second L connection is bridged internally.
The bus is connected using a bus connecting
terminal; a data rail is not necessary. A green LED
indicates readiness for operation after the application
has been loaded.
KNX software functions:
Operation as break or make contact, delay functions
for each channel, staircase lighting function
with/without manual OFF function, cut-out warning
for staircase lighting function, blocking and
additional logic operation or priority control,
scenes, status feedback function per channel,
central function, comprehensive parameterisation
for bus voltage failure and recovery, parameterisable
download behaviour.
Nominal voltage: AC 230 V, 50-60 Hz
Per switch contact:
Nominal current: 16 A, cos???? =0.6
Incandescent lamps: AC 230 V, max. 3600 W
Halogen lamps: AC 230 V, max. 2500 W
Fluorescent lamps: AC 230 V, max. 2500 VA
Capacitive load: AC 230 V, 16 A, max. 200 ?F
Device width: 8 modules = approx. 144 mm
— Contents: With bus connecting terminal and cable cover.
