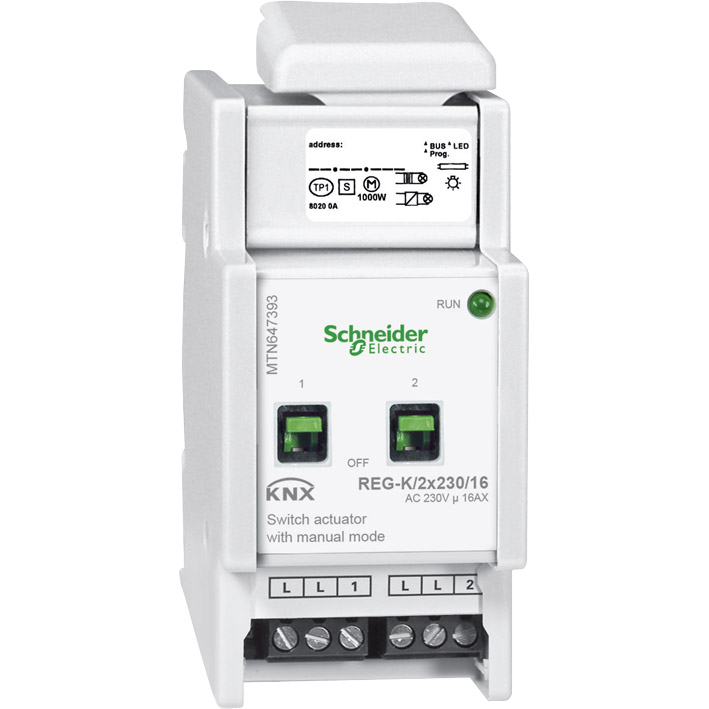

For independent switching of two loads via make
contacts. With integrated bus coupler and screw
terminals. For installation on DIN rails EN 50022.
The 230 V switch output can be operated with a
manual switch.
The bus is connected using a bus connecting terminal;
a data rail is not necessary. A green LED
indicates readiness for operation after the application
has been loaded.
KNX software functions:
Operation as break or make contact, delay functions
for each channel, staircase lighting function
with/without manual OFF function, cut-out warning
for staircase lighting function, blocking and
additional logic operation or priority control,
scenes, status feedback function per channel,
central function, comprehensive parameterisation
for bus voltage failure and recovery, parameterisable
download behaviour.
Nominal voltage: AC 230 V, 50-60 Hz
For each switching contact:
Nominal current: 16 A, cosφ = 0.6
Incandescent lamps: AC 230 V, max. 3600 W
Halogen lamps: AC 230 V, max. 2500 W
Fluorescent lamps: AC 230 V, max. 2500 VA
Capacitive load: AC 230 V, 16 A, max. 200 μF
Device width: 2.5 modules = approx. 45 mm
— Contents: With bus connecting terminal and cable cover.
