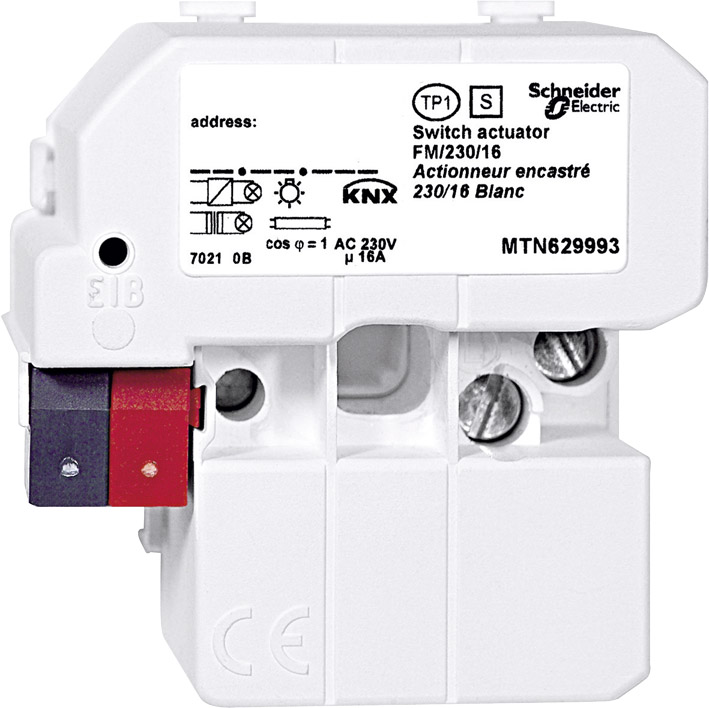

For switching a load via a make contact. With integrated
bus coupler and screw terminals. The
device is connected to the bus with a bus connecting
terminal. The actuator can be built into a
47 mm ceiling socket with hook or a flushmounted
switch box.
KNX software functions:
Operation as break or make contact, delay functions
for each channel, staircase lighting function
with/without manual OFF function, cut-out warning
for staircase lighting function, blocking and
additional logic operation or priority control,
scenes, status feedback function per channel,
central function, comprehensive parameterisation
for bus voltage failure and recovery, parameterisable
download behaviour.
Nominal voltage: AC 230 V, 50-60 Hz
Nominal current: 16 A, ohmic load
10 A, cosφ = 0.6
Nominal output
Incandescent lamps: AC 230 V, max. 2700 W
Halogen lamps: AC 230 V, max. 1700 W
Fluorescent lamps: AC 230 V, max. 1000 VA with
parallel compensation
Capacitive load: AC 230 V, max. 105 μF
— Contents: With bus connecting terminal.
