For System Design.

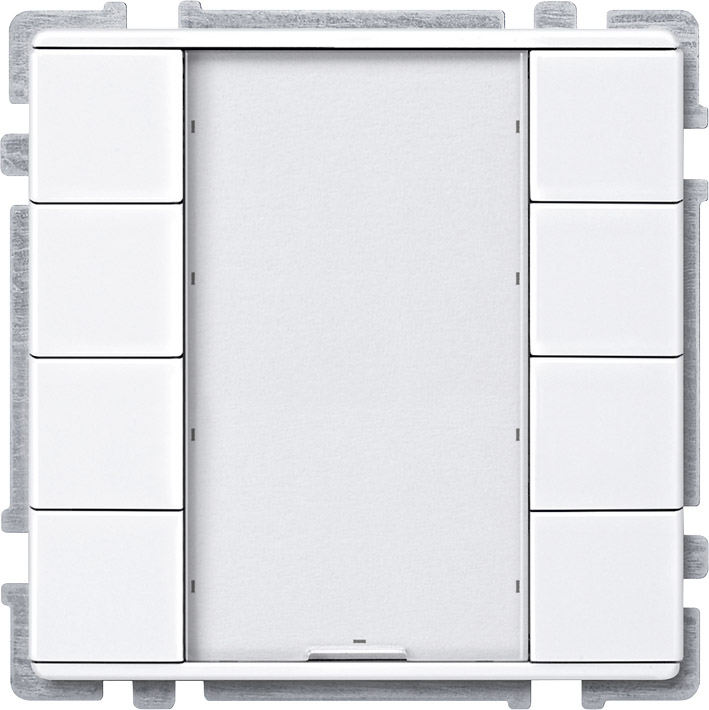

With integrated bus coupling unit. Push-button with eight operating buttons, operating display, eight blue status displays which can be triggered separately, and a labeling field. The blue operating display can also be used as an orientation sign. The lower labeling field can be parameterised as an additional operating key. The push-buttons are freely parameterisable as push-button pairs (dual-surface) or as single push buttons. The device is connected to the bus line with a bus connecting terminal.

KNX software functions:
Switching, toggling, dimming (single/dual-surface),blind (single/dual-surface), pulse edges trigger
1-, 2-, 4- or 8-bit telegrams (distinction between short and long operation), pulse edges with 2-byte telegrams (distinction between short and long operation), 8-bit linear regulator, scene retrieval, scene saving, disable functions.

Accessories: Labeling sheets for push-button plus art. no. 617819.

Contents: With protective hood for plaster. With bus connecting terminal.
