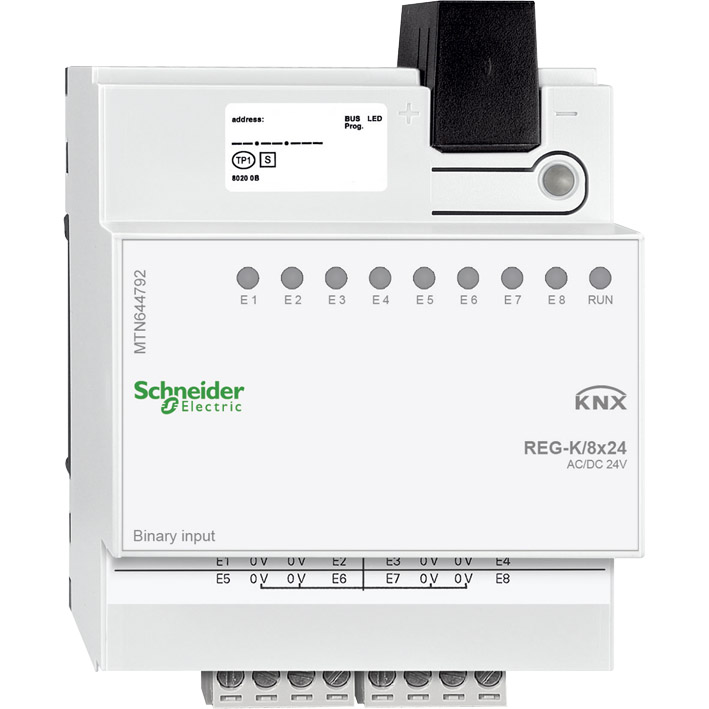

For connecting 8 conventional devices with AC/
DC 24 V outputs to KNX.
With integrated bus coupler and plug-in screw terminals.
For installation on DIN rails EN 50022.
The bus is connected using a bus connecting terminal;
a data rail is not necessary.
The input voltage level is displayed at each input
with a yellow LED. A green LED indicates that the
device is ready for operation once the application
has been loaded.

KNX software functions:
Switching, dimming or blind control via 1 or 2
inputs. Positioning values for blind control (8-bit).
Pulse edges with 1-, 2-, 4-, or 8-bit telegrams. Differentiation between short/long operation. Initialisation telegram. Cyclical sending. Pulse edges
with 2-byte telegrams. 8-bit linear regulator. Disable
function. Break/make contact. Debounce time.

Input voltage: AC/DC 24V
Inputs: 8
Input current: DC approx. 15 mA/AC approx. 6 mA
Line length: max. 100 m
Device width: 4 modules = approx. 72 mm

Accessories: Power supply REG, DC 24 V/0.4 A, art. no. 693003. Power supply REG, DC 24 V/1 A, art. no. 693004. Power supply REG, AC 24 V / 1 A, art. no. 663529.

Contents: With bus connecting terminal and cable cover.
