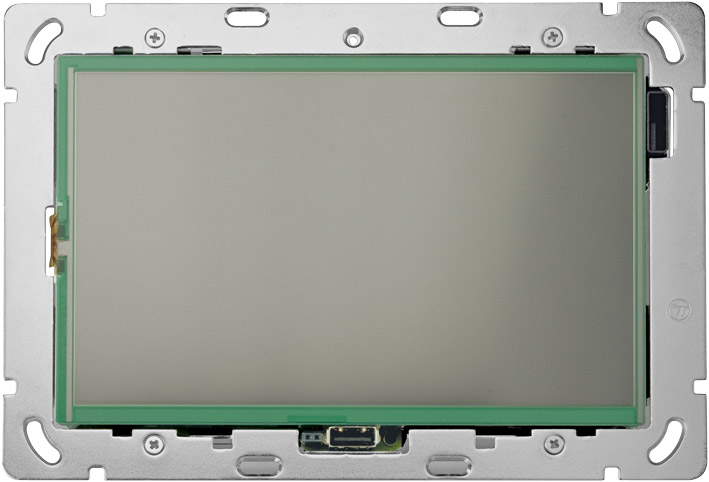

The 7" touch panel is used for the visualisation and control of current building states and functions. The integrated visualisation software with
the self-explanatory user interface offers a high level of operating convenience when operating the touch-sensitive TFT display.
Windows CE.NET is installed as the operating system.
Further functions:
• Real-time week time switch with internet time synchronisation
• Presence simulation (recording and play-back of switching habits)
• Alarm management
• Internet access
• Load a slide show
• Automatic standby switching
• Password protection
• Adjustable user interface
The 7" touch panel has a LAN (10/100 Mbit/s), KNX and USB interface.. With integrated loudspeaker.
Due to its flat design in a flush-mounted housing, its uses range from residential to commercial applications. It can be installed horizontally or vertically.
KNX software functions:
Switching, dimming, operation of sunshade systems such as roller shutters, awnings and blinds. Save and retrieve scenes Transmit values. Telegram status display. Temperature display. Logic functions. Disable module. Dynamic language selection via KNX object.
Nominal voltage: AC 230 V, 50 Hz
Power consumption: 2 W in energy-saving mode, 9 W when in operation
Ambient operating temperature: -5°C to 45 °C
Display size: 17.8 cm (7“)
Resolution: 800 x 480 pixels
Display type: TFT
Colours shown: 65.000
Hardware: 312 MHz Intel XScale PXA270
RAM: 64 MB
Flash memory: 64 MB
Type of protection: IP 20
Dimensions: 196x137x52 mm (HxWxD)
˜ In KNX, to be completed with: Inner frame set for 7" touch panel, art. no. MEG6270-01... Frame for 7" touch panel, art. no. MEG6270-00.., MEG6270-36.., MEG6270-37...
Accessories: Flush mounted box for 7" touch panel, art. no. MEG6270-0001. Cavity wall mounting box for 7" touch panel, art. no. MEG6270-0002.
