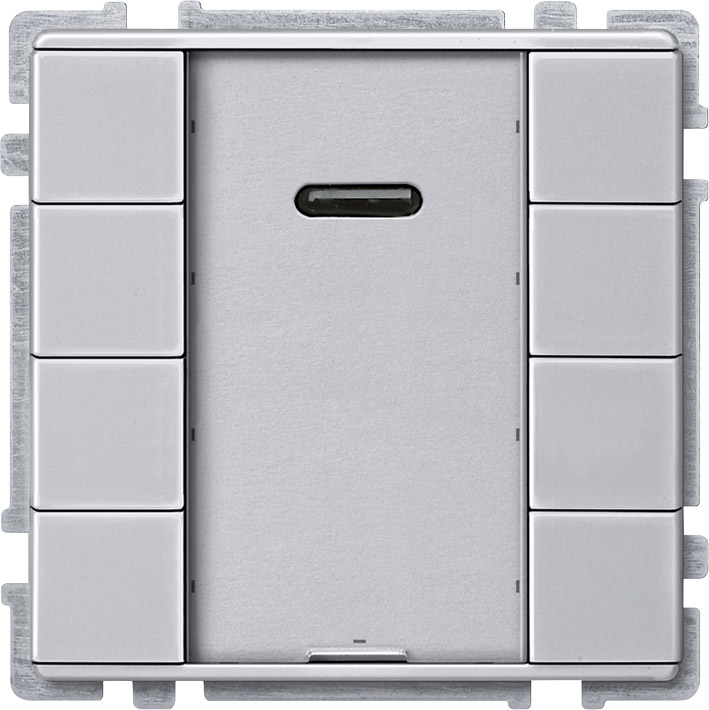

Push-button, 4-gang plus with IR receiver,Thermoplastic brilliant (aluminium)

290,67€
SKU: MTN628460

For System Design.
With integrated bus coupling unit.
Push-button with eight operating buttons, operating
display, eight blue status displays which can be
triggered separately, and a labelling field. The blue
operating display can also be used as an orientation
sign. The lower labelling field can be parameterised
as an additional operating key.

The push-buttons are freely parameterisable as
push-button pairs (dual-surface) or as single pushbuttons.

The functions of each of the keys can be triggered
using an IR remote control.

The push-button is pre-programmed for operation
with a Merten IR remote control Distance. Many other IR remote controls (e.g. existing TV or CD player remote controls) can be taught to the pushbuttons.

The device is connected to the bus line with a bus
connecting terminal.

KNX software functions:
Switching, toggling, dimming (single/dual-surface),
blind (single/dual-surface), pulse edges trigger
1-, 2-, 4- or 8-bit telegrams (distinction between short and long operation), pulse edges with 2-byte telegrams (distinction between short and long operation), 8-bit linear regulator, scene retrieval, scene saving, disable functions.

Accessories: Labelling sheets for push-button plus art. no. 617819.

Transmitter: IR remote control Distance, art. no. 570222.

Contents: With protective hood for plaster. With bus connecting terminal.

Price: 290,67€
