Main

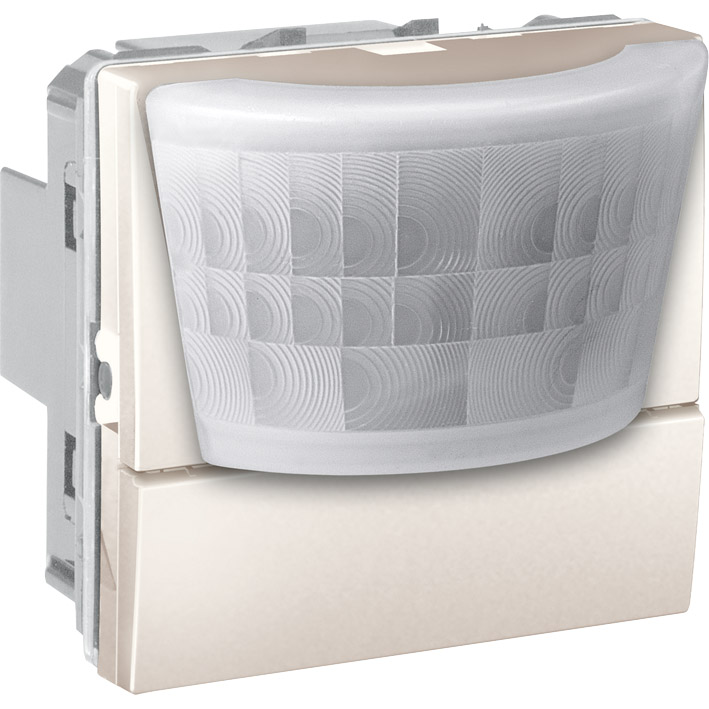

Aesthetic name Unica KNX
Product or component type Movement detector
Device presentation Mechanism
[Ue] rated operational voltage 230 V AC (+/- 10 %), 50/60 Hz
Number of modules 2 modules
Fixing mode Clip-in
Cover plate colour tint ivory
Mounting height 1...2.5 m
Complementary
Movement detection area 9 x 9 m(PIR mounting height 2.15m)
Detection angle Full 180°
Light intensity adjustment 10...2000 lux @ETS
10...< 1000 lux @rotary switch
Time delay ETS: 1 s...255 h
Rotary switch: 1 s...8 min
Connections - terminals Screwless terminals
Number of cables 2 rigid: <= 2.5 mm²
2 flexible: <= 2.5 mm²
Material Fixing frame: zamak
Mechanism cover: ASA + PC
Standards EMC directive
LV directive
Ambient air temperature for operation -5...45 °C
Embedding depth 34 mm
Depth 56 mm
Environment
IP degree of protection IP20
Environmental characteristic Acetone
Alcohol
Ammonia
Bleach
Liquid soap
Oil
Petrol
UV resistant
Window-cleaning fluid
Environmental health and issues Halogen free
