Main

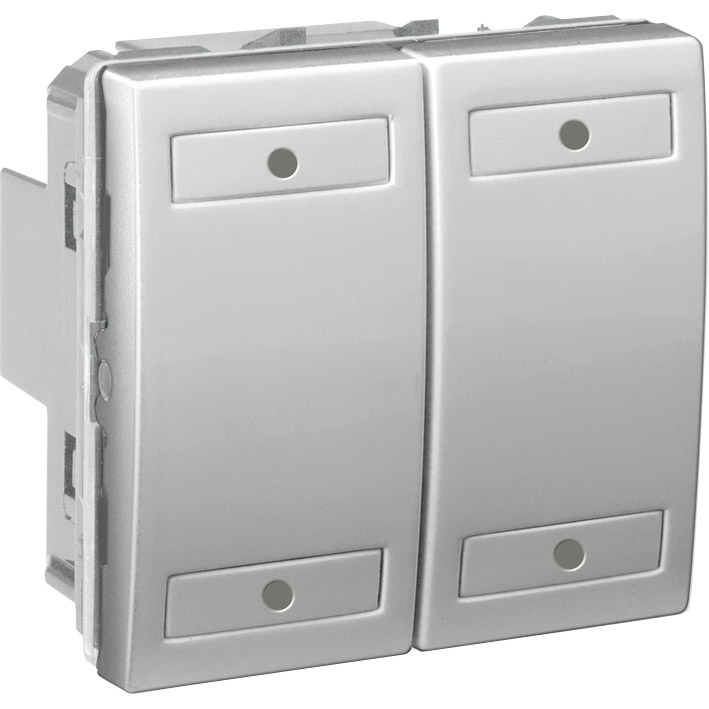

Aesthetic name Unica KNX
Product or component type Switch
Device presentation Mechanism
Switch function Double 2-way
Rated current 10 A, 24 V DC
Actuator Pushbutton
Number of modules 2 modules
Fixing mode Clip-in
Cover plate colour tint Aluminium
Complementary
Contacts type and composition 4 NO
Pilot light Blue LED: 1 mA (temperature : 15 °C)
Connections - terminals Screwless terminals
Cable cross section <= 2.5 mm² (rigid)
<= 2.5 mm² (flexible)
Insulation resistance > 5 MOhm @500 V
Dielectric strength > 2000 V
Standards EMC directive
EN 60669-1
LV directive
Ambient air temperature for operation -5...45 °C
Embedding depth 13 mm
Depth 38 mm
Environment
IP degree of protection IP20
Environmental characteristic Acetone
Alcohol
Ammonia
Bleach
Liquid soap
Oil
Petrol
UV resistant
Window-cleaning fluid
Environmental health and issues Halogen free
