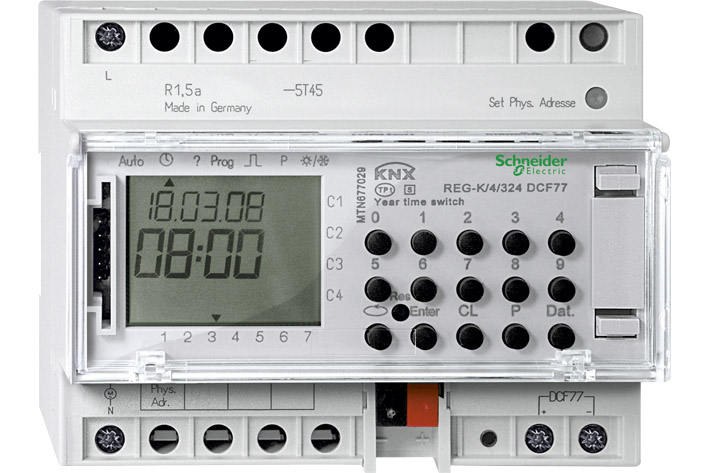

4-channel year time switch with power supply unit
and integrated DCF receiver. To be completed with
the DCF-77 antenna for radio-controlled time synchronisation.
Time and date can be issued on the
bus. The device can be programmed manually on
the device itself or on the PC using the CTS Chip
Tool software. With bus coupler. For installation on
DIN rails EN 50022.
The bus is connected using a bus connecting terminal;
a data rail is not necessary. After programming
on the PC, all switching times are exported to
a memory chip available as an accessory, and
transmitted from this into one or more time
switches.
Time functions:
• 324 non-volatile switching times for selectable
daily, weekly and date commands, impulse commands
• 1x switching operation for holiday/public holidays
• 10 weekly programs for holidays and public holidays
per channel
• Free formation of channel and weekday blocks
• Manual switching is possible via preselection
and permanent switches
• Random program can be activated
• High reserve power
• Automatic changeover between summer and
winter time
• Automatic time synchronisation with DCF possible
KNX software functions:
Switching. Dimming. Send time and date. Scene.
Priority.
Operating voltage: Bus, DC 24 V
AC 230 V ±10%, 50-60 Hz for antenna
Accuracy: ≤ ±1s/day
Reserve power: 1.5 years at full operability. Data
backup in disconnected state approx. 40 years
(EEPROM)
Type of protection: IP 20
Device width: 6 modules = approx. 105 mm
˜ In KNX, to be completed with: DCF-77 antenna, art. no. 668091.
Accessories: CTS ChipTool software, art. no. 615034. Memory
chip for year time switches, art. no. 668092.
