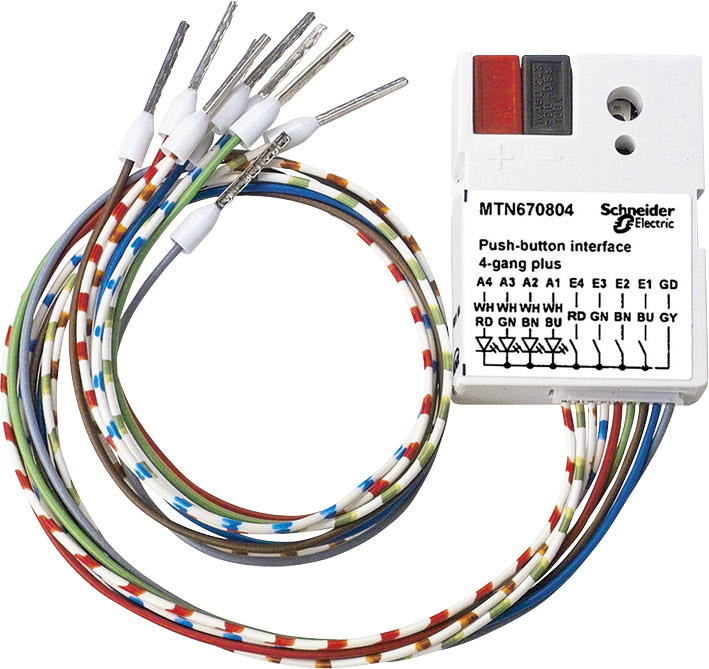

Push-button interface, 4-gang plus

146,95€
SKU: MTN670804

Generates an internal signal voltage for connecting
four conventional push-buttons or floating contacts,
and for connecting four low-current LEDs.
The cores are 30 cm long and can be extended to
max. 7.5 m. For installation in a conventional 60 mm switch box.

KNX software functions:
Switching, dimming or controlling blinds via 1 or 2
inputs, position values for blind control (8-bit),
pulse edges with 1-, 2-, 4-, or 8-bit telegrams, differentiation between short and long activation, initialisation telegram, cyclical transmission, pulse
edges with 2-byte telegrams, 8-bit linear regulator,
scenes, counter, disable function, break contact/
make contact, debounce time. Outputs for connecting
control lamps (low-current LEDs) for the
status display.

For each input/output object type:
Contact voltage: < 3 V (SELV)
Contact current: < 0.5 mA
Output current: max. 2 mA
Max. cable length: 30 cm unshielded, can be extended up to max. 7.5 m with twisted unshielded cable.

Dimensions: approx. 40x30.5x12.5 mm (LxWxH)

Accessories: LED light attachment, two-colour, for switch inserts art. no. 396512.

Price: 146,95€
