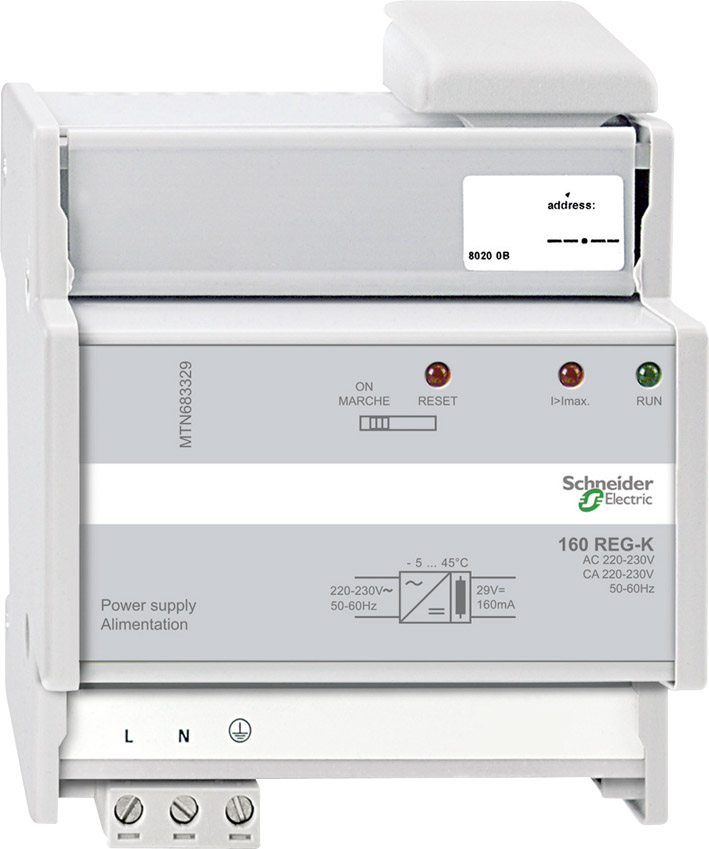

For generating the bus voltage for a line with up to
32 bus devices. With integrated choke to decouple
the power supply from the bus and a switch to disconnect
the power and reset the bus devices connected
to the line.
Can be connected to the mains with plug-in screw
terminals. For mounting on DIN rails EN 50022.
The bus is connected using a bus connecting terminal;
a data rail is not necessary.
Mains voltage: AC 230 V, 50-60 Hz
Output voltage: DC 29 V ± 1 V
Output current: max. 160 mA, short-circuit-proof
Device width: 5 modules = approx. 90 mm
— Contents: With bus connecting terminal and cable cover.
